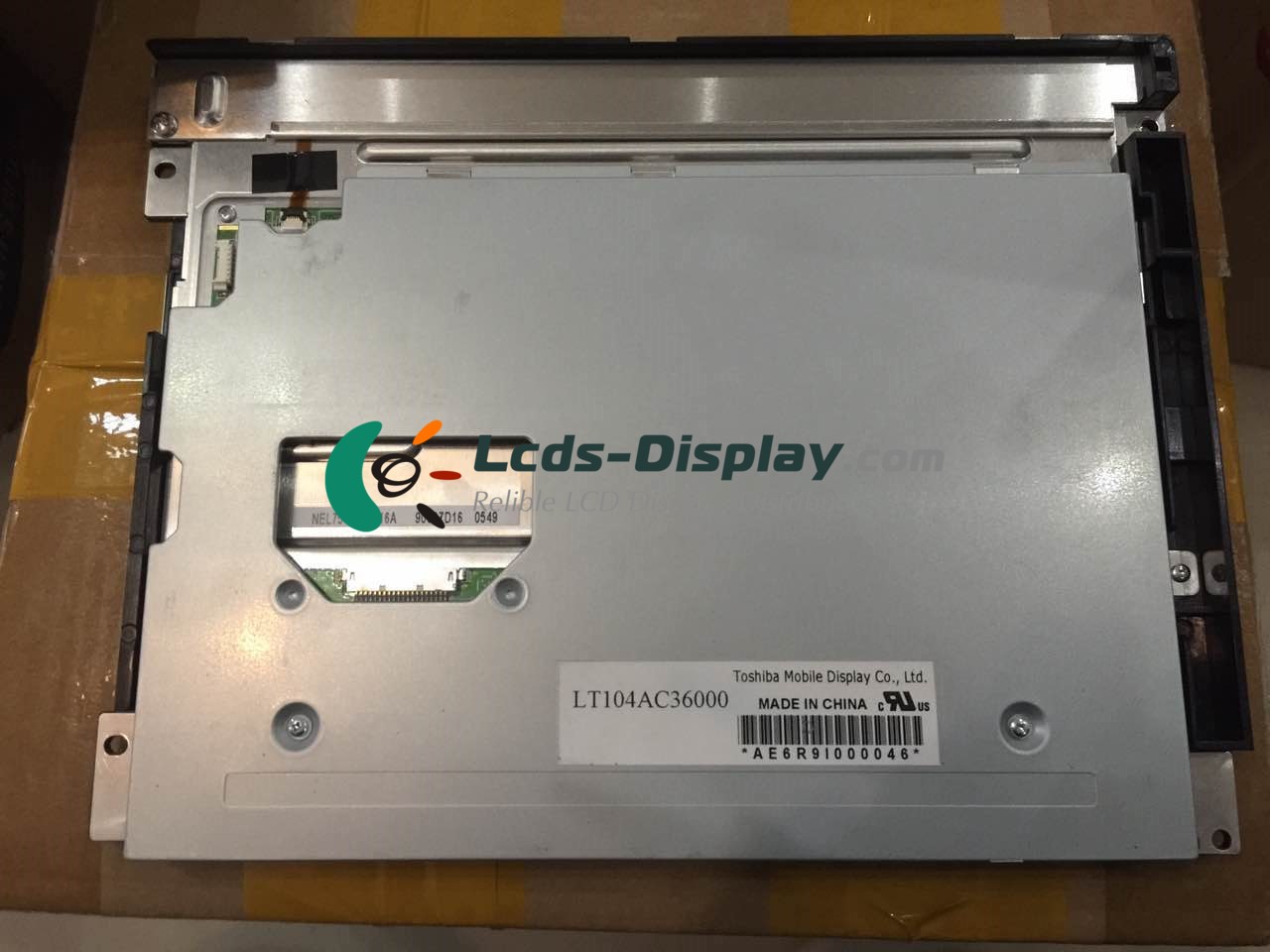

LT104AC36000
LT104AC36000 Maklumat asas
| panel Model | LT104AC36000 |
|---|---|
| panel Jenama | Toshiba Mobile Display |
| Descrition | LTPS TFT-LCD ,10.4 inch, 1024×768 |
| panel Jenis | LTPS TFT-LCD |
| Harga LT104AC36000 | Permintaan Harga & Lead Time |
| Suhu Operasi | -20 ~ 70 °C |
| Suhu Penyimpanan | -30 ~ 80 °C |
| Kenyataan | Mounting compatible with LTA104D182F series. |
LT104AC36000 Ciri-ciri mekanikal
| Resolusi Dot | 1024(RGB)×768 (XGA) |
|---|---|
| Konfigurasi Piksel | RGB Vertical Stripe |
| Ketumpatan Pixel | 123 PPI |
| Nisbah aspek | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch | 0.2055×0.2055 mm (H×V) |
| Berat badan | 785g (Typ.) |
| Kawasan Aktif | 210.432×157.824 mm (H×V) |
| Kawasan Bezel | 215.1×163.7 mm (H×V) |
| Dimensi Rangka | 242×185 mm (H×V) |
| Garis Garis Besar | 15.75 (Typ.) mm |
| Lubang & Kurungan | Face mounting holes (2-Φ3.4, 2-R1.7) |
| Landskap atau Potret | Landscape type |
| Sentuh Panel | Embeded (4-wire Resistive) |
LT104AC36000 Ciri-ciri optik
| Mod Paparan | TN, Normally White, Transmissive |
|---|---|
| Kecerahan | 320 cd/m² (Typ.) |
| Nisbah Kontras | 400 : 1 (Typ.) (Transmissive) |
| Warna paparan | 262K (6-bit) |
| Masa tindak balas | 10/20 (Typ.)(Tr/Td) |
| Melihat Sudut | 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D) |
| Cahaya matahari boleh dibaca | N |
LT104AC36000 Ciri Elektronik
| Imbas Songsang | Yes (U/D, L/R) |
|---|---|
| Jumlah Kuasa Penggunaan | 5.9W (Typ.) |
LT104AC36000 Sistem lampu belakang
| Kedudukan Lampu | Edge light type |
|---|---|
| Jenis Lampu | WLED |
| Jumlah lampu | 3 strings |
| Bentuk lampu | 3 strings |
| Waktu Hidup Lampu | 70K(Typ.) (Hours) |
| Boleh diganti lampu | Replaceable |
| Jenis Antara Muka | Connector |
| Lembaga Pemandu Lampu | 430mA (Typ.) |
LT104AC36000 Antara Muka isyarat
| Kategori Isyarat | LVDS |
|---|---|
| Kelas isyarat | LVDS (1 ch, 6-bit) |
| Voltan Input untuk Panel | 3.3V (Typ.) |
| Input semasa untuk Panel | 230mA (Typ.) |
| Jenis Antara Muka | Connector |
| Antara muka isyarat | I-PEX - 20268-020E-12F, Pitch:1.0 mm, Pin:20 pins |
