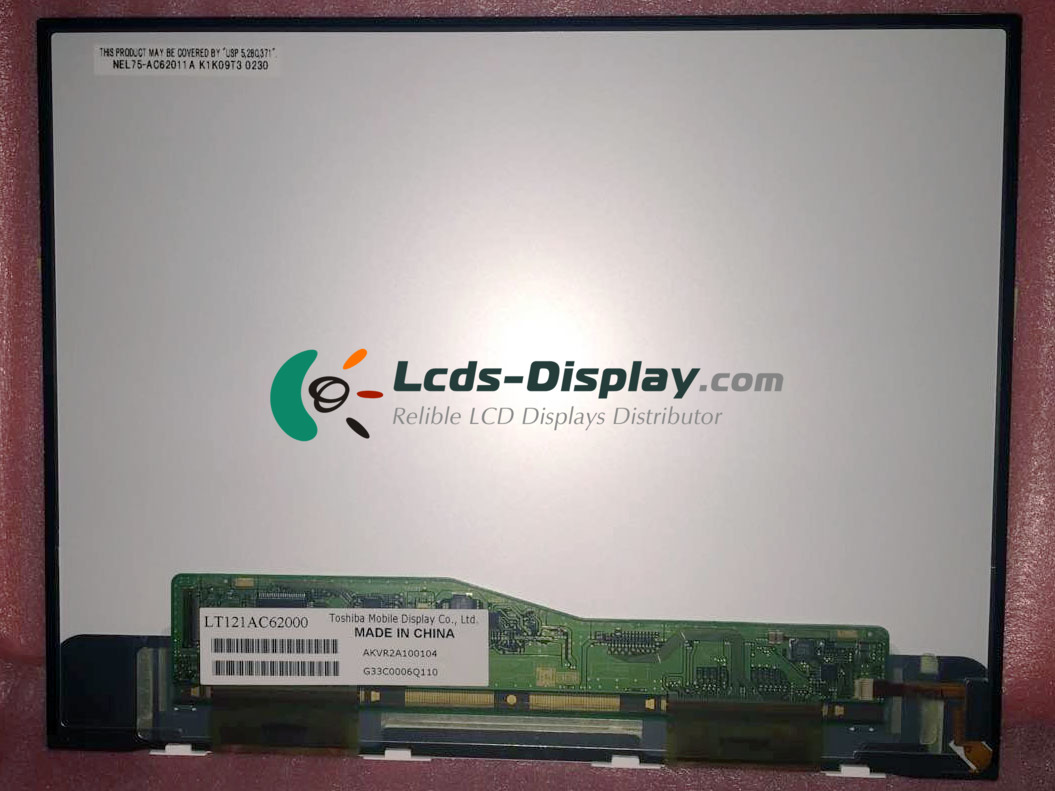

LT121AC62000
LT121AC62000 Maklumat asas
| panel Model | LT121AC62000 |
|---|---|
| panel Jenama | Toshiba Mobile Display |
| Descrition | LTPS TFT-LCD ,12.1 inch, 1024×768 |
| panel Jenis | LTPS TFT-LCD |
| Harga LT121AC62000 | Permintaan Harga & Lead Time |
| Suhu Operasi | 0 ~ 50 °C |
| Suhu Penyimpanan | -20 ~ 60 °C |
LT121AC62000 Ciri-ciri mekanikal
| Resolusi Dot | 1024(RGB)×768 (XGA) |
|---|---|
| Konfigurasi Piksel | RGB Vertical Stripe |
| Ketumpatan Pixel | 105 PPI |
| Nisbah aspek | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Berat badan | 170g (Typ.) |
| Surface | Antiglare |
| Kawasan Aktif | 245.76×184.32 mm (H×V) |
| Dimensi Rangka | 255×198 mm (H×V) |
| Garis Garis Besar | 4.385±0.3 mm |
| Lubang & Kurungan | Without |
| Landskap atau Potret | Landscape type |
| Sentuh Panel | Without |
LT121AC62000 Ciri-ciri optik
| Mod Paparan | TN, Normally White, Transmissive |
|---|---|
| Kecerahan | 280 cd/m² (Typ.) |
| Nisbah Kontras | 350 : 1 (Typ.) (Transmissive) |
| Warna paparan | 262K (6-bit) |
| Masa tindak balas | 15/30 (Typ.)(Tr/Td) |
| Cahaya matahari boleh dibaca | N |
LT121AC62000 Ciri Elektronik
| Frekuensi Menegak | 60Hz |
|---|---|
| Imbas Songsang | No |
LT121AC62000 Sistem lampu belakang
| Kedudukan Lampu | Edge light type |
|---|---|
| Jenis Lampu | WLED |
| Jumlah lampu | 8S5P |
| Bentuk lampu | 5 strings |
| Jenis Antara Muka | Included in panel signal interface |
| Lembaga Pemandu Lampu | 7.0/12.0/19.0V (Min./Typ./Max.) |
LT121AC62000 Antara Muka isyarat
| Kategori Isyarat | LVDS |
|---|---|
| Kelas isyarat | LVDS (1 ch, 6-bit) |
| Voltan Input untuk Panel | 2.5V (Typ.) |
| Input semasa untuk Panel | 220/265mA (Typ./Max.) |
| Jenis Antara Muka | Connector |
| Antara muka isyarat | I-PEX - 20474-030E-12, Pitch:0.4 mm, Pin:30 pins |
