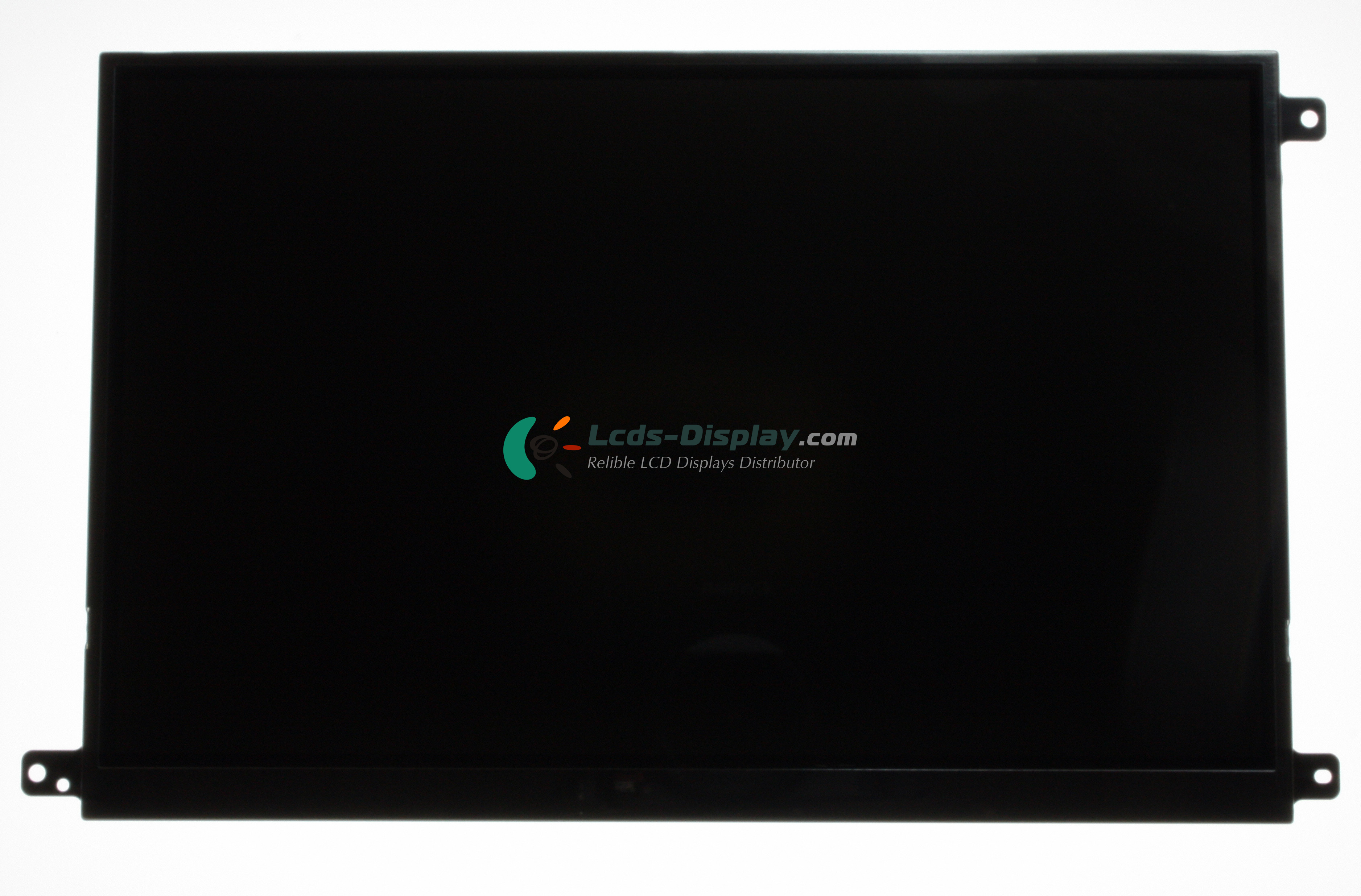

LTD089EXWS
LTD089EXWS Maklumat asas
| panel Model | LTD089EXWS |
|---|---|
| panel Jenama | Toshiba Mobile Display |
| Descrition | LTPS TFT-LCD ,8.9 inch, 1280×768 |
| panel Jenis | LTPS TFT-LCD |
| Harga LTD089EXWS | Permintaan Harga & Lead Time |
| Suhu Operasi | 0 ~ 50 °C |
| Suhu Penyimpanan | -20 ~ 60 °C |
| Kenyataan | Wedge Shape |
LTD089EXWS Ciri-ciri mekanikal
| Resolusi Dot | 1280(RGB)×768 (WXGA) |
|---|---|
| Konfigurasi Piksel | RGB Vertical Stripe |
| Ketumpatan Pixel | 167 PPI |
| Nisbah aspek | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0505×0.1515 mm (H×V) |
| Pixel Pitch | 0.1515×0.1515 mm (H×V) |
| Berat badan | 130g (Typ.) |
| Surface | Glare (Haze 0%) |
| Kawasan Aktif | 193.92×116.352 mm (H×V) |
| Kawasan Bezel | 198.8×121.2 mm (H×V) |
| Dimensi Rangka | 224×133 mm (H×V) |
| Garis Garis Besar | 5.15 (Max.) mm |
| Lubang & Kurungan | Face mounting holes (3-Φ2.8) on left, right slugs |
| Landskap atau Potret | Landscape type |
| Sentuh Panel | Without |
LTD089EXWS Ciri-ciri optik
| Mod Paparan | TN, Normally White, Transflective |
|---|---|
| Kecerahan | 225 cd/m² (Typ.) |
| Nisbah Kontras | 140 : 1 (Typ.) (Transmissive) |
| Warna paparan | 262K (6-bit) |
| Masa tindak balas | 80 (Max.)(Tr+Td) |
| Nisbah reflektif | 7% (Typ.) |
| Cahaya matahari boleh dibaca | Y |
LTD089EXWS Ciri Elektronik
| Frekuensi Menegak | 60Hz |
|---|---|
| Imbas Songsang | No |
| Jumlah Kuasa Penggunaan | 3.0W (Typ.) |
LTD089EXWS Sistem lampu belakang
| Kedudukan Lampu | Edge light type |
|---|---|
| Jenis Lampu | WLED |
| Jumlah lampu | 7S6P |
| Bentuk lampu | 6 strings |
| Voltan Lampu | 18.5/22.4/25.4V (Min./Typ./Max.) |
| Semasa Lamp | 15/20mA (Typ./Max.) |
| Lembaga Pemandu Lampu | No |
LTD089EXWS Antara Muka isyarat
| Kategori Isyarat | LVDS |
|---|---|
| Kelas isyarat | LVDS (1 ch, 6-bit) |
| Voltan Input untuk Panel | 3.3V (Typ.) |
| Input semasa untuk Panel | 285/420mA (Typ./Max.) |
| Jenis Antara Muka | Connector |
| Antara muka isyarat | I-PEX - 20347-030E-02, Pitch:0.4 mm, Pin:30 pins |
